    Phoenix IV Series Procedure Exam Chairs

    Manufacturer: JedMed
    • Specifically designed for head & neck specialist
    • Full mobility is standard - simply press the foot lever to activate
    • Choose from Standard or Articulating Headrest Posts

    Scroll down to see chairs in each upholstery color and to view optional accessories

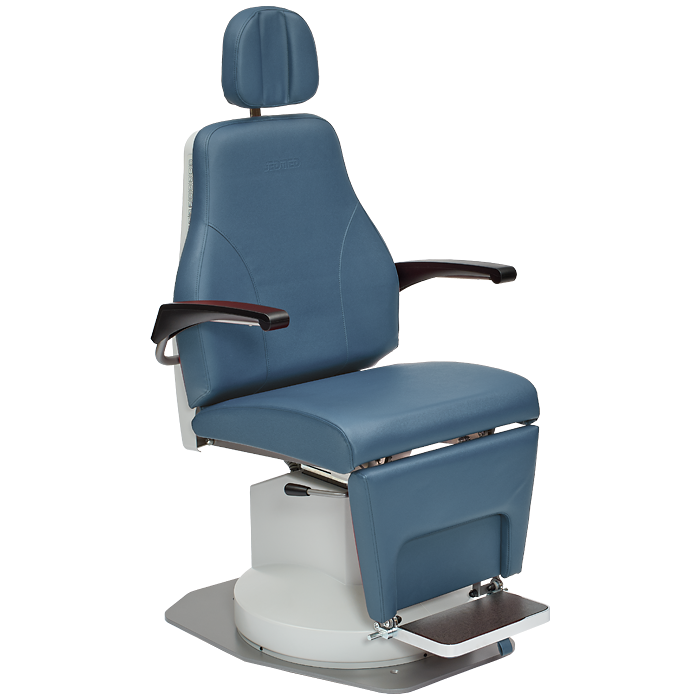

    The Phoenix IV Full Power Exam Chair was specifically designed with the Head & Neck specialist in mind. The chair utilizes industrial strength motors, solid steel construction, and modern engineering to meet the demands of your busy practice. The chair is designed to be comfortable for the patient yet functional for the physician. From its conveniently located low voltage membrane switches, its powerful lift capabilities, and full mobility, the Phoenix IV Chair is designed to meet your specific needs. The small footprint ensures the chair does not take up too much space in the exam or procedure room. The Phoenix IV Chair, designed in the USA, will provide you many years of trouble free service.

    Full Mobility is Standard

    • Designed to be fully mobile by simply depressing the foot release located on the left side of the base*
    • Chair can easily be moved for cleaning, procedure room relocation, or for easier access to equipment

    *Not to be used for patient transport

    Conveniently Located Control Switches

    • All chair functions are controlled by low voltage membrane switches that are conveniently located on both sides of the chair back
    • Chair functions include: vertical height adjustment, recline, 3 programmable positions, and an auto return feature
    • Conveniently located brake levers located on both sides of the chair provides lock rotation stability when needed

    Minor Procedure Capabilities

    • The Phoenix IV Series Exam Chair fully reclines to a flat position for minor procedure applications
    • Various height positions accommodates physicians working in either a sitting or standing position
    • The base provides a very stable foundation and its narrow design allows a stool to roll in close
    • "Quick-Change" headrest coupling option allows you to effortlessly change the headrest depending on your procedural needs**

    **Compatible only with the Phoenix IV Series Chair featuring Articulating Headrest (Item No. JM-391-4-AH)

    Patient Comfort

    • Specially designed anatomical backrest provides support for the patient’s arms comfortably at their sides
    • An ergonomically designed lumbar support adds to the patient’s comfort while keeping the head properly positioned for easy access
    • Seamless upholstery as well as padded wings on backrest to support patient's arms when in the reclined position
    • Armrests can be flipped down and footrest flipped up allowing easy entry and exit for the patient
    • When the chair is fully reclined the footrest is synchronized to keep the patient stable, secure, and comfortable
    • Footrest provides comfort and support for patient's feet during procedures
    • 4 optional speciality headrest available***

    ***Requires the "Quick Change" Headrest Coupling (Item No. JM-04-1934) which is only compatible with the Phoenix IV Chair (Item No. JM-391-4-AH)

    Built to Last with Modern Engineering

    • Stability and reliability are achieved through solid steel construction and proven engineering
    • Industrial strength reliable low voltage DC motors ensure top notch performance under the most challenging situations
    • An electro-mechanical drive system controls all functions of the chair with the push of a button
    • Permanent lubricated ball bearings allow for smooth 360° rotation
    • Upholstery is treated with PreFixx® Protective Finish that can be easily cleaned and disinfected and has been shown to have excellent chemical resistance

    Phoenix IV Series Procedure Exam Chair Specifications

      • Two Chair Models Available
        • Exam Chair with Standard Headrest Post (JM-391-4)
        • Exam Chair with Articulating Headrest Post (JM-391-4-AH)
      • Otolaryngology Chair Height
        • Minimum: 20"
        • Maximum: 30"
      • Upholstery Width Dimensions
        • Headrest: 9" (basic headrest pad)
        • Back Support: 24"
        • Seat: 27"
        • Foot Support: 12"
      • Base Dimensions
        • Length: 24"
        • Width: 29.5"
      • Patient Support Surface Length
        • Flat Position: 74"
      • Weight Limit
        • 550lbs.
      • Electrical
        • 110V, 50-60Hz, 200W
      • Warranty
        • 2 year manufacturer's warranty

    Optional Accessories (sold separately)

    Compatible with the JM-391-4 and JM-391-4-AH Phoenix Series IV Chairs
    • Foot Control (JM-04-1845): $345.00
    • Halogen Gooseneck Lamp (JM-04-1835): $500.00
    • Pediatric Booster (JM-04-1740): $294.00****

    Compatible ONLY with the JM-391-4-AH Phoenix Series IV Chair

    • "Quick Change" Headrest Bracket (JM-04-1934): $295.00*****
    • Full Rubberized Concave Headrest (JM-04-1940-1): $245.00****
    • Half Rubberized Spherical Headrest (JM-04-1940-2): $225.00****
    • Stretch/Pillow Headrest (JM-04-1940-3): $165.00
    • Comfort Headrest (JM-04-1940-4): $130.00

    ****JM-04-1740 Pediatric Booster available in black only
    ****JM-04-1940-1 and JM-04-1940-2 headrests available in black only
    *****Quick Change Headrest Bracket required for speciality headrests JM-04-1940-1, -02, -03 and -04

    Scroll down to "Related Products" to view and purchase these optional accessories










    NOTE ABOUT SHIPPING THIS ITEM
    This exam chair and any accessories purchased with the chair is shipped as freight and must be quoted. The shipping cost displayed during checkout is NOT the freight cost. If you purchase this exam chair and accessories in the same order, we will contact you with the correct freight cost before processing your order.

    Chair accessories purchased without the exam chair will be shipped via UPS.
    Phoenix IV Series Procedure Chair with Standard Headrest Post and Aloe Color Upholstery
    Phoenix IV Series Procedure Chair (Standard Headrest Post)
    HOVER OVER COLOR SWATCH TO VIEW NAMES.
    CLICK ON SWATCH TO SELECT AN UPHOLSTERY COLOR.

    Scroll down to "RELATED PRODUCTS" to view and purchase optional accessories.
    Item Number: JM-391-4
    *
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    • Not available
    €6000.05
    i h
    Picture of Phoenix IV Series Procedure Chair (Articulating Headrest Post)
    Phoenix IV Series Procedure Chair (Articulating Headrest Post)
    HOVER OVER COLOR SWATCH TO VIEW NAMES.
    CLICK ON SWATCH TO SELECT AN UPHOLSTERY COLOR.

    Scroll down to "RELATED PRODUCTS" to view and purchase optional accessories.


    NOTE: The optional "Quick-Change" Headrest Bracket accessory as well as the 4 optional specialized headrests are compatible ONLY with this Phoenix IV Series Exam Chair Model.
